Αυλακωτά εξαρτήματα > Πυροπροστασία

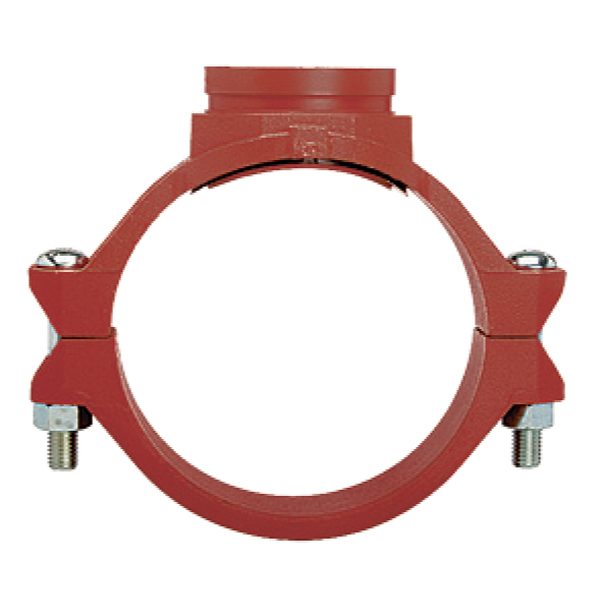

Κλέφτες βιδωτοί Fig. 730G

Περιγραφή

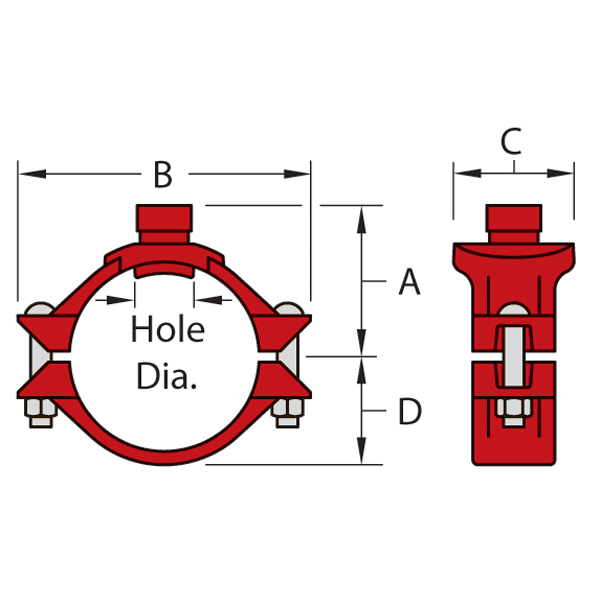

Κωδικός ΔιάμετροςA mmB mmC mmD mmHole Dia. Min (mm)Hole Dia. Max (mm)
730AG20121 2" x 1 1/4'' 70.6 124 84.3 40.4 44.5 47.6
730AG20151 2" x 1 ½" 66.5 124 84.3 40.4 44.5 47.6
730MG26121 2 ½" x 1 1/4'' 77.7 142.7 90.4 47.5 50.8 54
730MG26151 2 ½" x 1 ½" 79.5 142.7 90.4 47.5 50.8 54
730MG26201 2 ½" x 2" 82.6 142.7 101.6 47.5 50.8 54
730MG30121 3" x 1 1/4'' 84.8 155.7 84.3 56.1 44.5 47.6
730MG30151 3" x 1 ½" 85.9 155.7 90.4 56.1 50.8 54
730MG30201 3" x 2" 88.9 155.7 103.9 56.1 63.5 66.7
730AG42121 4" x 1 1/4'' 99.6 181.1 84.3 70.6 44.5 47.6
730AG42151 4" x 1 ½" 101.6 181.1 90.4 70.6 50.8 54
730MG42201 4" x 2" 101.6 181.1 103.1 70.6 63.5 66.7
730MG42261 4" x 2 ½" 101.6 181.1 111.3 70.6 69.9 73
730MG42301 4" x 3" 104.9 181.1 130.3 70.6 88.9 92.1
730MG53151 5" x 1 ½" 117.6 206.5 90.4 85.6 50.8 54
730MG53201 5" x 2" 117.6 206.5 103.1 85.6 63.5 66.7
730MG53261 5" x 2 ½" 120.7 206.5 111.3 85.6 69.9 73
730MG53301 5" x 3" 127 206.5 130.3 85.6 88.9 92.1
730MG63121 6" x 1 1/4'' 130.3 235 90.4 99.1 50.8 54
730AG63151 6" x 1 ½" 130.3 235 90.4 99.1 50.8 54
730AG63201 6" x 2" 130.3 235 103.1 99.1 63.5 66.7
730AG63261 6" x 2 ½" 130.3 235 111.3 99.1 69.9 73
730AG63301 6" x 3" 139.7 235 130.3 99.1 88.9 92.1
730AG63421 6" x 4" 136.7 235 155.7 99.1 114.3 117.5
730AG80201 8" x 2" 158.8 317.5 111.3 124.5 69.9 73
730AG80261 8" x 2 ½" 158.8 317.5 111.3 124.5 69.9 73
730AG80301 8" x 3" 165.1 317.5 130.3 124.5 88.9 92.1
730AG80421 8" x 4" 162.1 317.5 155.7 124.5 114.3 117.5
